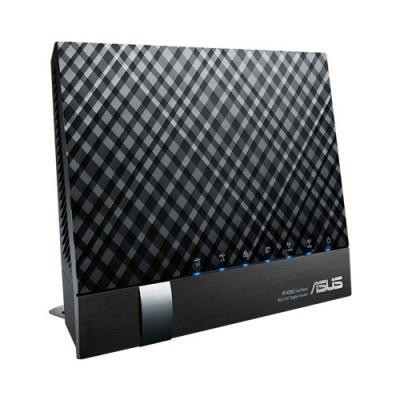

次世代路由器先驅 ASUS RT-AC56S 以全新 802.11ac Wi-Fi 技術提供雙頻 Gigabit 無線傳輸。 其強大的雙核心 CPU 和 128MB DDR3 RAM 可在 2.4GHz 及 5GHz 頻段下提供最佳效能。 5GHz 與 2.4GHz 頻段分別高達 867Mbps 和 300Mbps,提供驚人的 1167Mbps 總頻寬速度, 為標準 2x2 無線 N 路由器的三倍! 不僅如此,USB 3.0 連接埠的資料傳輸速度更高達 USB 2.0 的十倍。RT-AC56S 外觀採用絕美的黑鑽設計。 如使用 ASUS AiCloud 應用程式搭配 USB 3.0,即可隨處存取雲端,毫不費力。 此智慧型行動應用程式可將 ASUS 無縫雲端體驗延伸至 Android 和 iOS 裝置,供您快速存取、同步、串流或分享內容。 ASUS 獨家 ASUSWRT 介面提供 30 秒設定、多重 SSID 及 IPv6 支援以進一步強化網路管理,USB 3.0/USB 2.0 連接埠則可讓 RT-AC56S 瞬間變成檔案伺服器 / 3G/4G 分享伺服器 / 強化型媒體伺服器 / VPN 伺服器 / 印表機伺服器,提供極致的多用途路由器功能
- 網路標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
- Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
- 傳輸速率
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
802.11ac : up to 867 Mbps
- 天線規格
Internal PCB antenna x 4
- 運作頻率
2.4GHz/5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support
- Firewall & Access Control
Firewall:SPI intrusion detection,DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter
- 管理程式
UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ, Universal Repeater, System Event Log
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
- WAN Connection Type
Internet connection type :
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
- Utilities
.Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
.Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
.QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
.Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
.Printer Server: multifunctional printer support(Windows nly), LPR protocol support
.File server: Samba and FTP server with account management
.PPTP VPN server
.Network map
.Traffic monitor
- Ports
1 x RJ45 for 10/100/1000/ BaseT for WAN, RJ45 for 10/100/1000/ BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1
- Button
WPS Button, Reset Button, Power Switch, Wireless on/off Button
- LED Indicator
PWR x 1
LAN x 1
WAN x 1
USB x 2
Wi-Fi x 2
- 電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
- 作業系統支援
Windows® 8.1
Windows 7
Windows® 8
Windows Vista
Windows 2000
Windows ME
Windows XP
Mac OS X 10.4 or higher
Mac OS X 10.1 or higher
Mac OS X 10.x or higher
Windows® Server 2003
Windows® Server 2008
Linux Kernel (Support Ubuntu only)
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X
Linux
- 規格
147 x 205 x 66 ~ mm (WxHxD)
- 重量
406 g
- 包裝內容
1 x RT-AC56U Dual Band Wireless-AC1200 Gigabit Router
1 x RJ-45 cable
1 x Power adapter
1 x Warranty card
1 x QSG
1 x Support CD(user manual and ultility)
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
