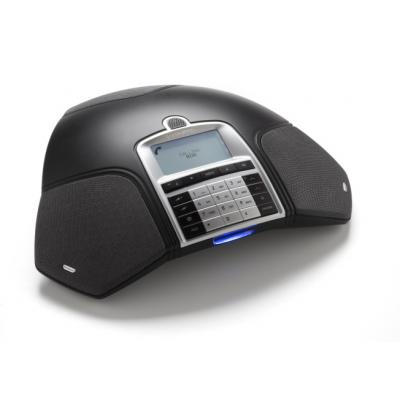

OmniSound® 2.0 Wideband via USB.
Omnidirectional microphone.
Microphone: analog line 200–3300 Hz, USB 200–7000 Hz.
Pickup range of up to 30 m2, < 10 persons.
Loudspeakers: volume 90 db SPL 0.5 m, 150-7000 Hz.
Equalizer: soft, neutral and bright.
CONNECTIONS
Power supply: AC adapter 100-240 V AC/14 V DC.
Expansion microphones: modular 4/4.
Auxiliary: Modular 4/4 for wireless headset or PA system.
DIRECTORY
Phonebook: 50 contacts.
Call groups: 20 groups.
RECORDING
Supports SD memory cards up to 32 GB
ANTI-THEFT PROTECTION
Anti-theft protection: Kensington security slot.
DIMENSIONS
Size: Diameter 240 mm, height 77 mm
Weight: 1 kg.
Color: Charcoal black.
DISPLAY AND KEYPAD
Display: Illuminated graphics LCD, 128x64.
Keypad: Alphanumerical 0–9, *, off hook/F, on hook, mute, hold,
volume up, volume down, 5 buttons for menu navigation,
line (line mode), and conference guide.
APPROVALS
Telecommunication: TBR21, 47 CFR Part 68/TIA, IC CS-03 Issue 1999/01/01.
EMC: EN301 489-1,3. EN 300 220-1,2, FCC subparts B and C.
Electrical safety: UL 60950-1, EN 60950-1:2001.
ENVIRONMENTAL CONDITIONS
Temperature: 5° – 40°C.
Relative humidity: 20-80% condensation free.
