方便的辦公室電動切紙機，自動夾具和EASY-CUT - 適用於A3格式。

配備新的專利EASY-CUT刀片激活桿，方便安全切割。全面的SCS安全包：前台上帶鉸鏈的電子控制安全防護裝置; 後桌上的透明安全罩; 主開關和帶鑰匙的安全鎖; 電子控制真正的雙手操作; 24伏控制（低電壓）; 獲得專利的EBA安全驅動器; 自動刀片和夾具從每個位置返回; 盤式製動器用於即時刀片停止; 帶有切邊的刀片更換裝置; 從機器外部調整刀片深度; 從機器前部輕鬆更換刀片，無需拆下蓋板; 切割棒可以從機器外部輕鬆轉動或更換。機電刀片和夾緊驅動器。最多可裁切500張紙（70克/平方米）或最大40毫米的裝訂小冊子。刀片由德國優質鋼製成。實心鋼刀架。可調節的刀片導軌由淬硬鋼製成。精密側面。帶手搖曲柄的主軸導向後擋料。數字測量讀數用於前台上的後擋料定位（厘米或英寸）。專利自動夾具。光學切割線，明亮耐用的LED。堅固的全金屬結構。設計為台式機，可選配支架或帶儲物架的櫃子（需額外付費）。
質量“德國製造”

功率：230 V / 50 Hz / 1~（其他可用電壓）
容量：0.45 kW
尺寸：355 x 640 x 870 mm（高x寬x深），帶支架/機櫃的高度1085 mm / 1080 mm
重量：86 kg表頂部型號，96 kg帶支架，118 kg帶櫃子



切割長度（mm）	430
切割高度（mm）	40
檯面深度（mm）	435
窄切（mm）	35
訂單號	43513011

訂單號	42051100

訂單號	42151100

訂單號	9000121

訂單號	9000221

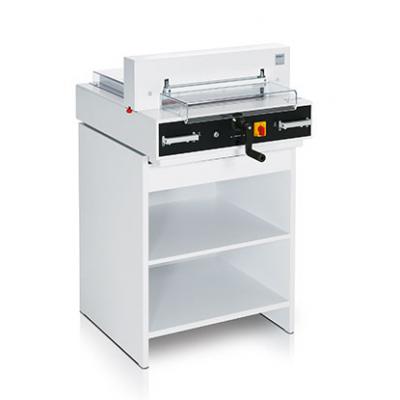

CONVENIENT OFFICE GUILLOTINE WITH ELECTRO-MECHANICAL BLADE DRIVE, AUTOMATIC CLAMP AND EASY-CUT – FOR FORMATS UP TO A3.

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt control (low voltage); patented EBA safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers; cutting stick can be turned or replaced easily from the outside of the machine. Electromechanical blade and clamp drive. Cuts up to 500 sheets of paper (70 g/m2) or bound brochures up to 40 mm. Blade made of German high quality steel. Solid steel blade carrier. Adjustable blade guides made of hardened steel. Precision side lay. Spindle guided backgauge with hand crank. Digital measurement readout for backgauge positioning (cm or inches) on the front table. Patented automatic clamp. Optical cutting line with bright and durable LEDs. Solid all-metal construction. Designed as table top machine, a stand or a cabinet with storage shelf are available as an option (at an extra cost).
Quality "Made in Germany"

Power: 230 V / 50 Hz / 1~ (other voltages available)
Capacity: 0.45 kW
Dimensions: 355 x 640 x 870 mm (H x W x D), height with stand / cabinet 1085 mm / 1080 mm
Weight: 86 kg table top model, 96 kg with stand, 118 kg with cabinet



Cutting length (mm)	430
Cutting height (mm)	40
Table depth (mm)	435
Narrow cut (mm)	35
Order Number	43513011

Order Number	42051100

Order Number	42151100

Order Number	9000121

Order Number	9000221
