A handy addition to offices, schools, factories, and hospitals
Prints any language
Fast, easy printing of labels useful for organizing and managing things
It's simple to print labels useful for a variety of applications, including filing, asset management, and attention notices. Insert QR codes or barcodes.
Space-saving design for desktop use
Choose horizontal or vertical setup according to the space available. The compact printer is always available to create labels when needed.
Simple operation for quick and easy label creation
LABEL DESIGN MAKER — software —
Create original labels or print pre-designed labels simply by choosing from a variety of pre-loaded label samples.
Freestyle creation
You can freely create original labels.
Choosing labels by scene
Label samples are searchable by setting.
Choosing labels by category
Samples are searchable by category. A wide variety of label samples is available.
Convenient printer keys for one-touch printing
Memory print
Reprint

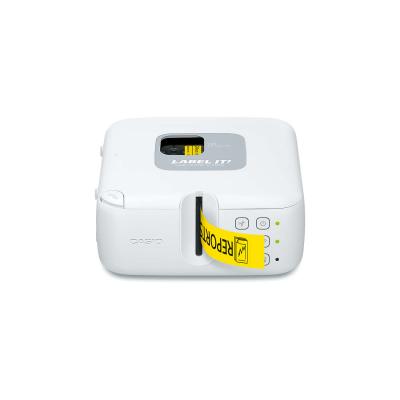

Specifications (Hardware : KL-P350W)
|
Dimensions (H × W × D)
|
61 × 131.7 × 136 mm
|
|
|---|---|---|
|
Weight
|
495 g
|
|
|
Power supply
|
AC adaptor AD-1824L (included)
|
|
|
Auto power off
|
Approx. 6 minutes (excluding when connected)
|
|
|
Keys
|
6 keys
(Power, wireless LAN switching, feed, cut, reprint, memory print) |
|
|
Max. print resolution
|
144 dots / 200 dpi
|
|
|
Max. print length
|
600 mm
|
|
|
Max. print speed
|
20 mm/sec*1
|
|
|
Available tape widths
|
24 / 18 / 12 / 9 / 6 mm
|
|
|
Auto cutter with half-cut function
|
●
|
|
|
Accepts magnetic tape
|
●*2
|
|
|
Interfaces
|
MicroUSB (supplied)
Wireless LAN (IEEE 802.11b/g/n) |
|
|
Wireless LAN
|
● (AP / CLIENT)
|
|
|
PC Link software / Smartphone application
|
LABEL DESIGN MAKER
|
|
|
Connector cable
|
MicroUSB (supplied)
|
|
|
Accessories
|
AC adaptor (AD-1824L), Sample tape × 1, dedicated USB cable, quick start guide, warranty
|
|
- *1 Up to 10 mm/sec when using 24 mm tape / Up to 5 mm/sec when using magnetic tape.
- *2 The smartphone application does not support use of magnetic tape.
Specifications (Software : LABEL DESIGN MAKER)
|
Application
|
for PC
|
for Smartphone
|
||
|---|---|---|---|---|
|
Samples
|
Categories: 10 types
(Equipment / Device Calibration / Attention / Sign / 5S campaign / Trash separation / Documents / Name tag / Power saving / Price tag) English, Thai, Traditional Chinese: 131 each Scenes: 6 types (Factory / Office / Hospital / School / Store / Construction) English, Thai, Traditional Chinese: 355 each* |
8 types
(Attention / Sign / 5S campaign / Trash separation / Documents / Name tag / Power saving / Hospital) English, Thai: 83 each |
||
|
Tape length
|
to 600 mm
|
to 600 mm
|
||
|
Fonts
|
PC fonts, LABEL DESIGN MAKER fonts
|
Smartphone fonts, LABEL DESIGN MAKER fonts
|
||
|
Character size
|
3 to 600
|
Freely scalable
|
||
|
Character styles
|
Normal / Bold / Italic / Underline / Inverted
|
—
|
||
|
Print direction
|
Horizontal / Vertical
|
Horizontal / Vertical
|
||
|
Numbering
|
● (0-9, a-z)
|
●
|
||
|
Merge print (import)
|
● (xlsx, csv)
|
—
|
||
|
Image paste
|
● (BMP, JPG, PNG, GIF)
|
●
|
||
|
Table creation
|
●
|
—
|
||
|
Time stamp
|
●
|
●
|
||
|
Barcode printing
|
14 types :
EAN-13(JAN-13), EAN-8(JAN-8), UPC-A, UPC-E, ITF, CODE39, NW-7(CODABAR), CODE128, GS1-128, GS1 Databar, QR Code, PDF417, Data Matrix, maxiCode |
5 types :
EAN-13(JAN-13), ITF, CODE39, CODE128, QR Code |
||
|
Frames
|
41
|
46
|
||
|
Storage
|
● (lyz)
|
● (200 items)
|
||
|
Administrator privileges
|
Unnecessary
|
—
|
||
|
USB driver
|
Unnecessary (Note: Necessary for Windows® 7)
|
—
|
||
|
Language support
|
English / Thai / Traditional Chinese
|
English / Thai
|
||
LABEL DESIGN MAKER for Smartphone System Requirements
|
Operating system
|
Android 5.0 or higher
|
iOS10.0 or higher
|
||
|---|---|---|---|---|
- An Internet connection is required for certain functions, such as searching for samples.
- LABEL DESIGN MAKER is not compatible with Windows for smartphones or tablets.
LABEL DESIGN MAKER System Requirements
