11月*精選促銷價貨品*
 |
雙 線 鐵 圈 裝 訂 (辦公室/印刷店)● 專業裝訂機
● 3：1寸雙線鐵圈制式
● A4 / F4(360mm)
● 打孔厚度達22張/80gsm
● 裝訂厚度達135張/80gsm(≦16mm雙線鐵圈)
● 42方孔全部可抽刀
● 紙張左右及邊距離調節
● 德國製造
● 1年市區上門保用
● 56x33x18cm / 15kg

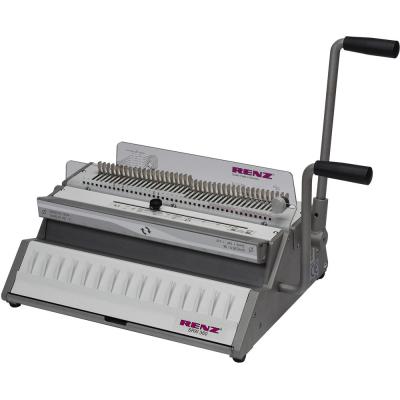

SRW Combined manual punch and manual closing machine for RENZ RING WIRE® wire comb binding in 3:1 pitch
The universal manual punching and binding machine with the ergonomic two-lever system and easy-to-use auxiliary functions. 42 selectable punching dies, variable margin for adjusting to format perfectly, up to 36 cm. Punches up to 22 sheets (2.2 mm) and binds up to 135 sheets.
Features
- ergonomic work flow from top to botton
- wire holder for binding elements
- comfortable and easy inserting of the pages when binding
- best cutting pressure ratio
- thanks to its modular construction, the SRW 360 can be upgraded with an electric drive, creating an electric punch and manual closing machine
- compact, strong construction
- quality "Made in Germany"
Technical Data:
Article no.: 27310020
- EAN:
4029126342005
- Working width:
max. 360 mm
- Punching thickness:
max. 22 sheets
(70/80 gr./m² paper)
- Book thickness:
max. 13,5 mm (135 sheets)
- Punch and binding capacity:
max. 180 books/h
(depending on product, logistics and operator)
- Possible wire diameters:
3/16 - 5/8" (5,5 - 16 mm)
- Pitch:
3:1
- Punching:
square holes 4 x 4 mm
- Time required for diameter change:
only a few seconds
- Number of punching pins:
42
- Punching pins individually deselectable:
yes
- Adjustable margin:
yes
- Number of loops / loops on A4:
34
- Machine: Lenght x Width x Height:
33 x 56 x 18 cm
- Packing: Length x Width x Height:
box / 64 x 48 x 28 cm
- Weight/ net, gross:
15 kg / 18 kg
