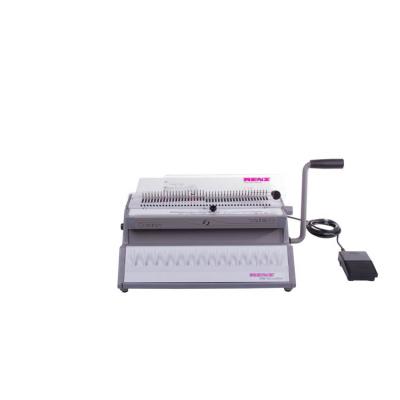

3:1 pitch electric punching and manual binding machine designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

comfortplus stands for a considerably improved punching speed compared with our current comfort series. The higher speed is achieved using a new motor which is twice as powerful. The new comfortplus machines replace the current models SRW 360 comfort, eco 360 comfort, ERW and eco E.

• Binds up to 135 sheets
• Closure control guarantees easy ring wire closure for perfect presentations every time
• Gauge to alter margin for a stronger bind
• Special hardened punch pins for long lasting life
• Staggered punching pins for better punching
• QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
• Adjustable side lay for perfect punching registration
• Easy to empty sliding waste tray
• Measures the document or ring wire size
• Parallel adjustment guarantees a perfect bind every time
• Heavy duty construction & compact design

Maximum:

Width
360 mm

Punching thickness
2.2 mm

Binding thickness
13.5 mm

Output:

Max. no. of punched sheets per hour
16,000

Max. no. of bound products per hour
250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 - 2.0 mm.

Vertical punching makes it easy to punch accurately every time.

QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.

Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.

Binds up to 135 sheets. The closure control guarantees quick and exact wire closing.

Punching capacity sheets per hr	16,000
Min. punching width	10 mm
Max. punching width	360 mm
Min. unpunched length	50 mm
Max. unpunched length	500 mm
Max. punching thickness	2.2 mm
Punching operation	Electric
Punch dies available	Square 4 x 4 mm
Pitch	3:1
Selectable punch pins (QSA)	Yes
Variable margin depth	Yes
Binding thickness	1 - 13.5 mm
Binding element Ø	5.5 - 16 mm 3/16" - 5/8"
Min. binding width	10 mm
Max. binding width	360 mm
Binding operation	Manual
No. of books output per hr	250
No. of calendars output per hr	180
Machine dimensions L x W x H	430 x 560 x 180 mm
Machine weight	26 kg
Machine packing dimensions L x W x H	620 x 480 x 345 mm
Machine weight with packing	28.5 kg
Power requirement	230/250V / 50Hz / 180W 115/200V / 60Hz / 180W
