- 網路標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
- Product Segment
AC1200 enhanced AC performance : 300+867 Mbps
- 傳輸速率
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
802.11ac : up to 867 Mbps
- 天線規格
Detachable dipole antenna x 2
*Antenna type will differ according to local regulations and requirement in each country
- 運作頻率
2.4GHz/5GHz
- Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support
- Firewall & Access Control
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
- 管理程式
UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, SNMP, NTP Client, DDNS, Port Triger, DMZ, System Event Log
- VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
- WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
- Ports
1 x RJ45 for 10/100/1000/ BaseT for WAN, RJ45 for 10/100/1000/ BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1
- Button
WPS Button, Reset Button, Power Button
- LED Indicator
PWR x 1
LAN x 1
Wi-Fi x 2
USB x 2
WAN x 1
WPS x 1
- 電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
- 作業系統支援
Windows® 8.1 32bit/64bit
Windows 7 32bit/64bit
Windows® 8 32bit/64bit
Windows Vista 32bit/64bit
Windows 2000 32bit/64bit
Windows ME
Windows XP 32bit/64bit
Mac OS X 10.x or higher
Windows® Server 2003
Windows® Server 2008
Linux Kernel (Support Ubuntu only)
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Mac OS X 10.9
Mac OS X 10.10
Linux
- 規格
207 x 148.8 x 35.5 ~ cm (寬x長x高)
- 重量
539 g
- 顏色
Black
- 包裝內容

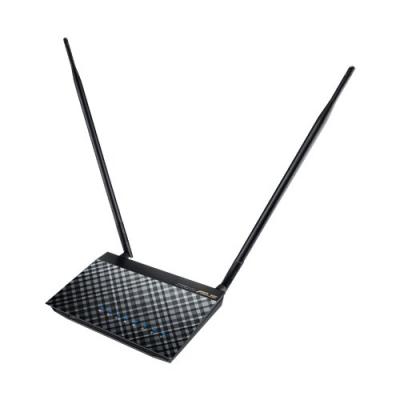

RT-AC55UHP Dual-band Wireless-AC1200 Gigabit Router
RJ-45 cable
Support CD (User manual)
Power adapter
Quick Start Guide
2 detachable Antennas
Warranty card
- Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
- Operation mode
Wireless router mode
Access point mode
Media bridge mode
